Make selection in a table and transfer selected data without using Boolean checkbox component of VBCS.



Generally, to transfer the selected data from one variable to another over selection we will be using Boolean check box. Can we achieve it without that? Let’s see.

Main Article:

Lets drop a table component to the designer section and assign an SDP to the table.

In this case the SDP I’ve used is from the Business object.

Make the selection mode as multiple as below:

Now let’s create another table in the same page of type ADP which holds the data that is selected from the previous table and let’s have a button action which refresh the ADP table on click action performed over it.

Now the web page will look something like this.


Click on the SDP table and select On ‘select Multiple rows event’ and follow the below steps:

·       Call the REST connection using which the data had been populated in the SDP table

·       On success, reset the ADP variable of below table

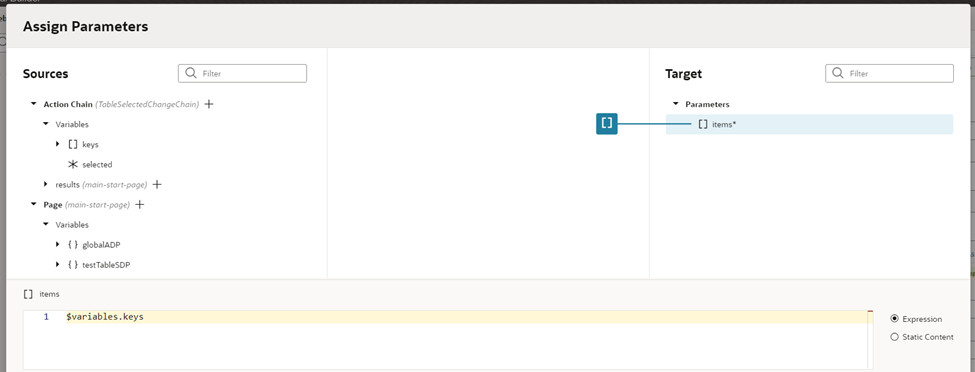

·       Drop a for each action and iterate over the keys.


·       Inside the loop use firedataprovider action with add action.

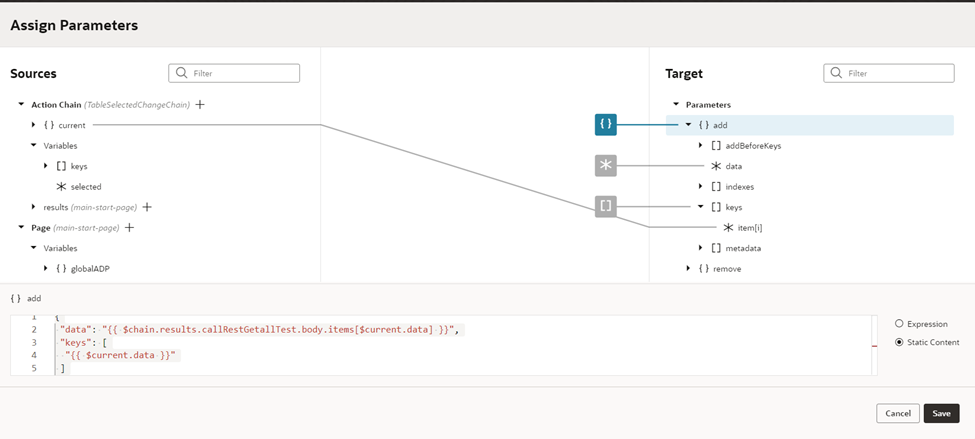

·       Now set the mapping as below


 "data": "{{ $chain.results.callRestGetallTest.body.items[$] }}",

 "keys": [

  "{{ $ }}"



·       Map the ADP variable in the target section

The final flow should look like below:

·       Now refresh the ADP using the fire data provider on Button click event.

That’s it the logic is now complete.

Lets test the web app:

As you could see the selected ones from the SDP got successfully inserted to ADP table.

-Preetham Konjeti
