Convert App based Integration to Scheduled Integration without wrapper in OICS

we all know that converting a scheduler integration to REST is quite easy , where as the reverse is not possible and the only way to achieve it is through creating a wrapper scheduler integration and invoking the trigger one as child from there.

But there is another way through which we can achieve the direct conversion.

For that please refer to below example.

Note : Every step mentioned has to be done very carefully

Create Scheduler Integration.

I’ve created a base one in which it invokes a SOAP service.

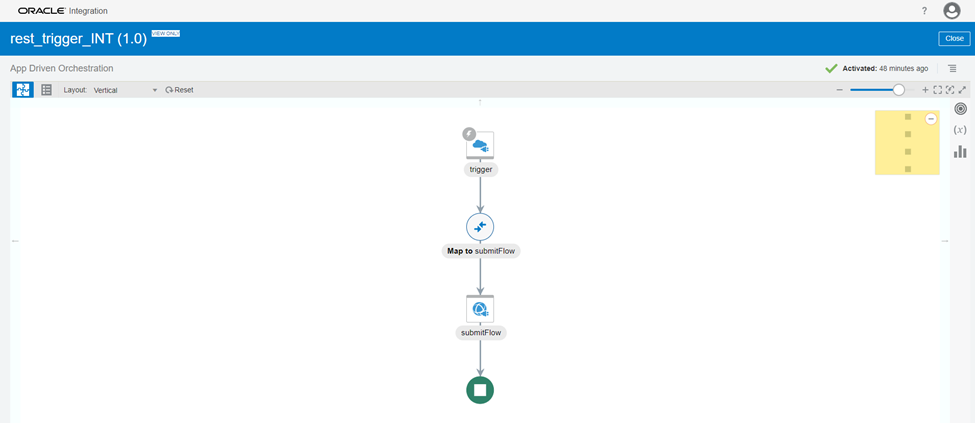

 I’ve created a small trigger integration which I’m going to change to scheduler without any wrapper.

Please follow the below steps to convert rest based to scheduler:

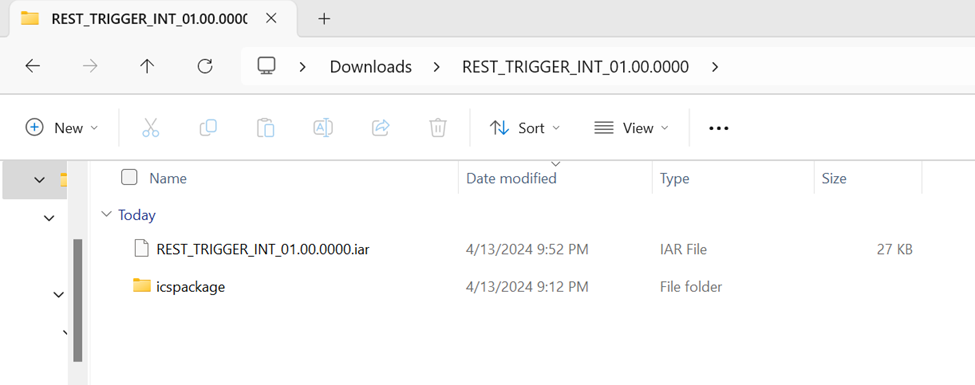

    1)  Export the integration.

    2) Rename the iar file to zip.

    3) Now unzip the file.

    4)  Compare the properties files of both scheduler and rest based integration and make the changes to rest based as per the scheduler integration

After changes

Now open the resources folder:

Move the scheduler resource file “Processor_8” to the App driven / rest based trigger integration

Scheduler file

Now open the PROJECT_INF folder and compare the analysis files between the two integrations and remove the rest_trigger components form the analysis file of app driven integration and replace them with the scheduler components.

Post changes

Similarly for project.xml file as well

That’s all now once you are done with the changes.

Now zip the "icspackage" folder and rename it with the integration name

After importing back the lates one to the OIC , now the rest based integration is converted to scheduled

Hope you have liked the article and learnt something new for the day.

-Preetham Konjeti
